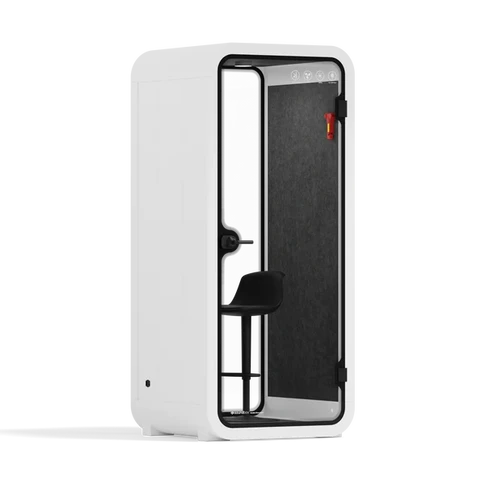

Soundproof Booth S.png

S Model

For one person

Phone Booth / Solo Zoom Room

The acoustic office booth by Sound Booth Store is a space to gain clarity and dedicated focus.

Gather peace of mind and be proactive in the task at hand.

Available with several different furniture options for various functions from a 1 - 2 person phone booth to a 2-person occasional meeting pod,

or a single-person workstation with a desk and modern height adjustable office chair.

Soundproof Booth 1.png
Soundproof Booth soundproof.jpg


In our designing process, we fully utilize acoustic simulation software such as INSUL MARSHALL ACOUSTIC to iterate and obtain optimal acoustic performance.

Our booth is consistent with the standard of environmental rating Design value: Rw+Ctr 25 db (+5 db) and RT0.75 s (+0.1 s).


Low noise air ventilation system with maze-like internal layout to ensure necessary air circulation in three minutes, while preserving soundproofing attributes of the booth.

Soundproof Booth Ventilation.jpg
Soundproof Booth Light_edited.jpg


Equipped with 4000 K daylight color temperature LED lighting system (150 LX), it would satisfy the needs of normal activities. In the event of additional power requirements, a backup power supply is readily installed inside the booth.

S Model

For one person


Internal Size:
Height: 214cm Width: 84cm
Depth: 90cm
External Size:
Height: 230cm Width: 100cm Depth: 93.6cm


Singular Turbo Fan, Highly efficient airflow at 78m³/h refreshing air every two minutes,
guaranteeing excellent oxygen rates.
A low-noise air system via multi-channel air ducts allows minimum noise disturbance inside and out.

Sound / Acoustics

Leading The Sound Pod Industry
STC 30dB (±5dB) &
RT0.25s (±0.1s)
Daiki Verified
ISO 23351-1


External Shell
Aviation Type Alloy
Nanometer PP Finish

Internal Panels
Carbon Composite
≤0.071kg CO2e

Similar To High Speed Trains

Damping Feet
Vibration control

Electrical / Lighting

*4000k  (150Lx) Daylight LED
*Multiple Power Outlets, 220- 24V + USB, USB-C
*Energy Saving Motion Sensor
*Blue Tooth Audi System
*Aux Lossless Port

Optional Furniture

Optional furniture built specifically for these pods is an excellent option for comfort and style.
The stool is adjustable via a hydraulic lift; the work shelf is plywood style front and white laminated top.


Emergency Safety Hammer
Included For Internal Fitting

Fire Rated Foam
UK Fire foam where required.

Sprinkler / Mains Fire Alarm
Laser cut and usable if required

Formaldehyde Free
No wood or glue


Recycled materials approx
≥180kg (12m²/0.66m³) each

Carbon Footprint
≤0.071kg CO2e

Energy Consumption

Soundproof booth ADP.jpg

Soundproof Booths

4 different sizes to meet your needs

Soundproof Booth S.png
Soundproof Booth M.png
Soundproof Booth L.png
Soundproof Booth XL.png

For one person

For two persons

For four persons

For six persons
